Cart model FCS

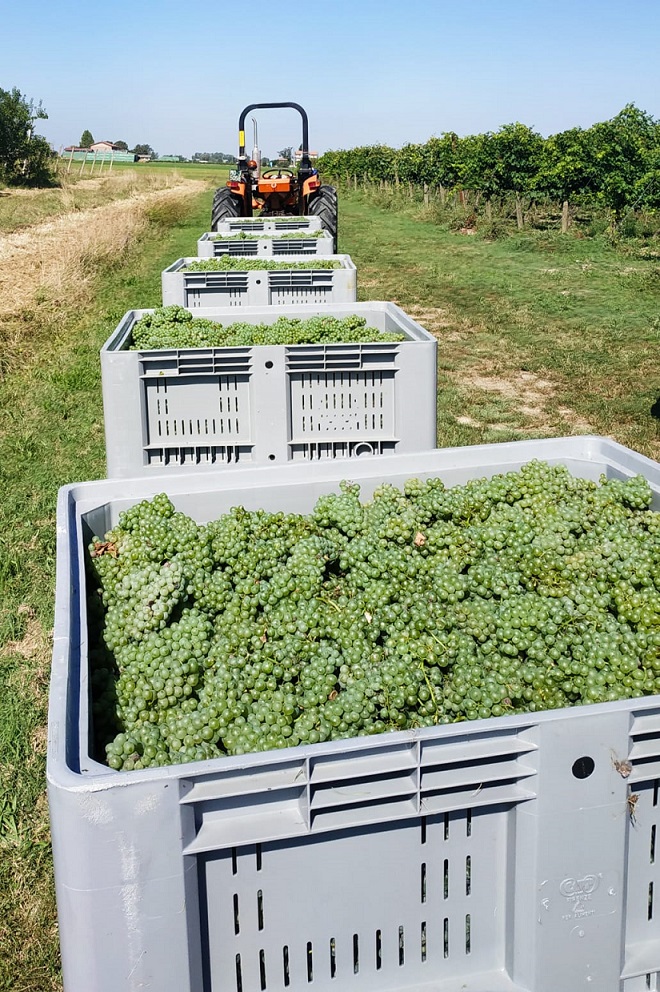

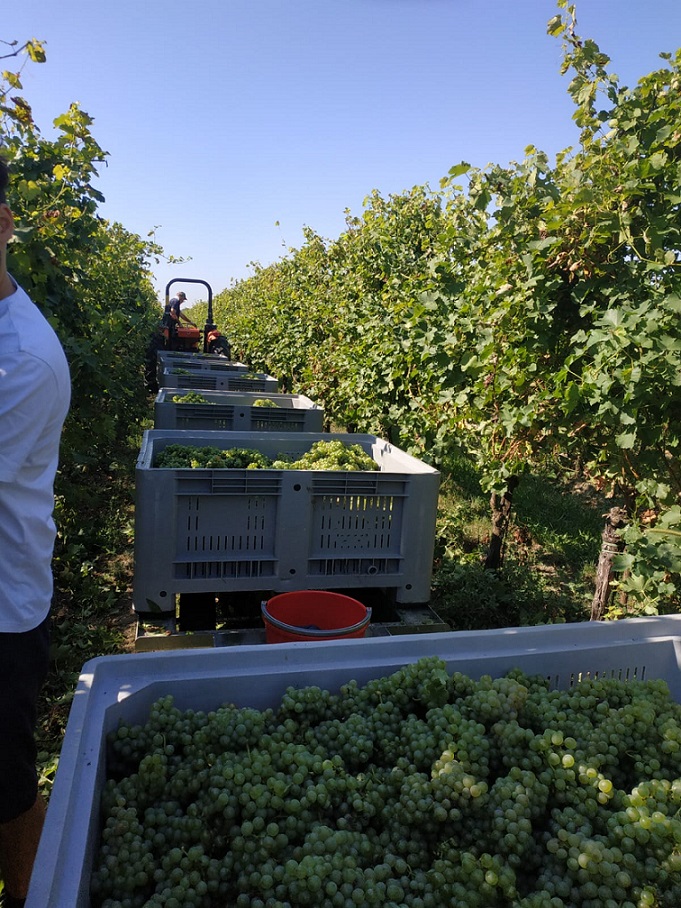

Cart Model FCS carries a large box or boxes.
The couple is formed by the two carriages engaged in a spring system that keeps them balanced.
You can merge multiple pairs and form a long line to be towed by the tractor, quad…
The articulated steering rudder system allows you to carry more possible pairs, once hooked they start to follow the same trajectory. They are completely galvanized in a totally removable version, or fixed frame

Details
The maximum permitted capacity per cart: 600 kg max
Height of the loading platform from the ground: 330 mm
Minimum dimensions of the transport container 1120x1260x450mm
Maximum size of the transport container 1120x1260x770 mm
Maximum height of load permitted 1100 mm
Weight kg. 180
